scorpion

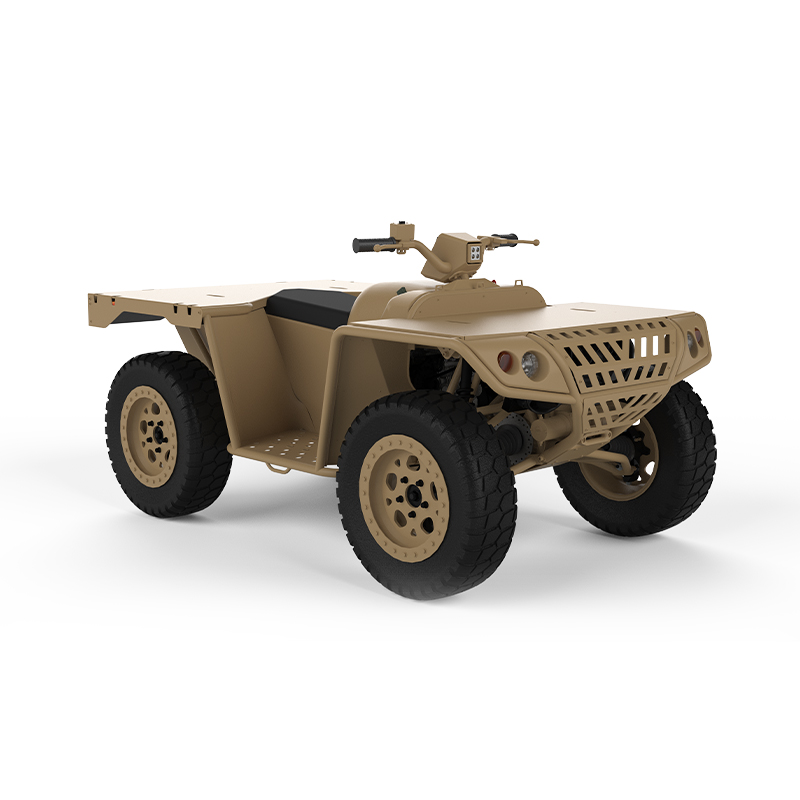

Get to know the Scorpion

scorpion7

Powertrain with variable transmission

Multifuel diesel engine

Variable transmission (from 3 to 100 km/h)

Terrain capacity and mobility

Continuous 4 wheel drive including differential

4-wheel steering

High off-road suspension capacity

scorpion8
scorpion3

Airtransportable

Internal transport

Underslung

Multifunctional Mule

High payload --> 500 kg

Front and back mount for medic stretcher

Variable weapon mount

Multifunctional loading deck front and back

scorpion9

SPECS

  • Curb weight: 700 Kg
  • Length: 2530 mm
  • Width: 1490 mm
  • Heigh: 1270 mm
  • Angle of approach (unloaded): 77┬░
  • Angle of departure (unloaded): 75┬░
  • Ground Clearance (unloaded): 330 mm
  • Payload (dispersed on front and rear loading deck): 545 kg
  • Max Total Vehicle weight: 1200 kg
  • Engine Type: Diesel common rail - 3 cyl
  • Max power: 50 Kw (3500 RPM)
  • Max torque: 130 Nm
  • Fuel Types: Diesel
  • Fuel Tank Capacity: .40 L
  • Operational Fuel Range: 600 km
  • Drive line: Permanent 4x4
  • Transmission: RVT Variable transmission
  • Transfer Case: 1 reverse & 1 low
  • Differentials Front/Rear: Hydraulic operated┬ásystem, 0% - 90% infinitely
  • Tires: 28x8R15
  • Rims: Bead lock
Scorpion3.0

Product Brochure

The weight and dimensions of the Vector are designed to fit in a chinook helicopter. Special lifting brackets make the Vector also transportable in underslung, hanging from a helicopter.
