scorpion

Get to know the Scorpion

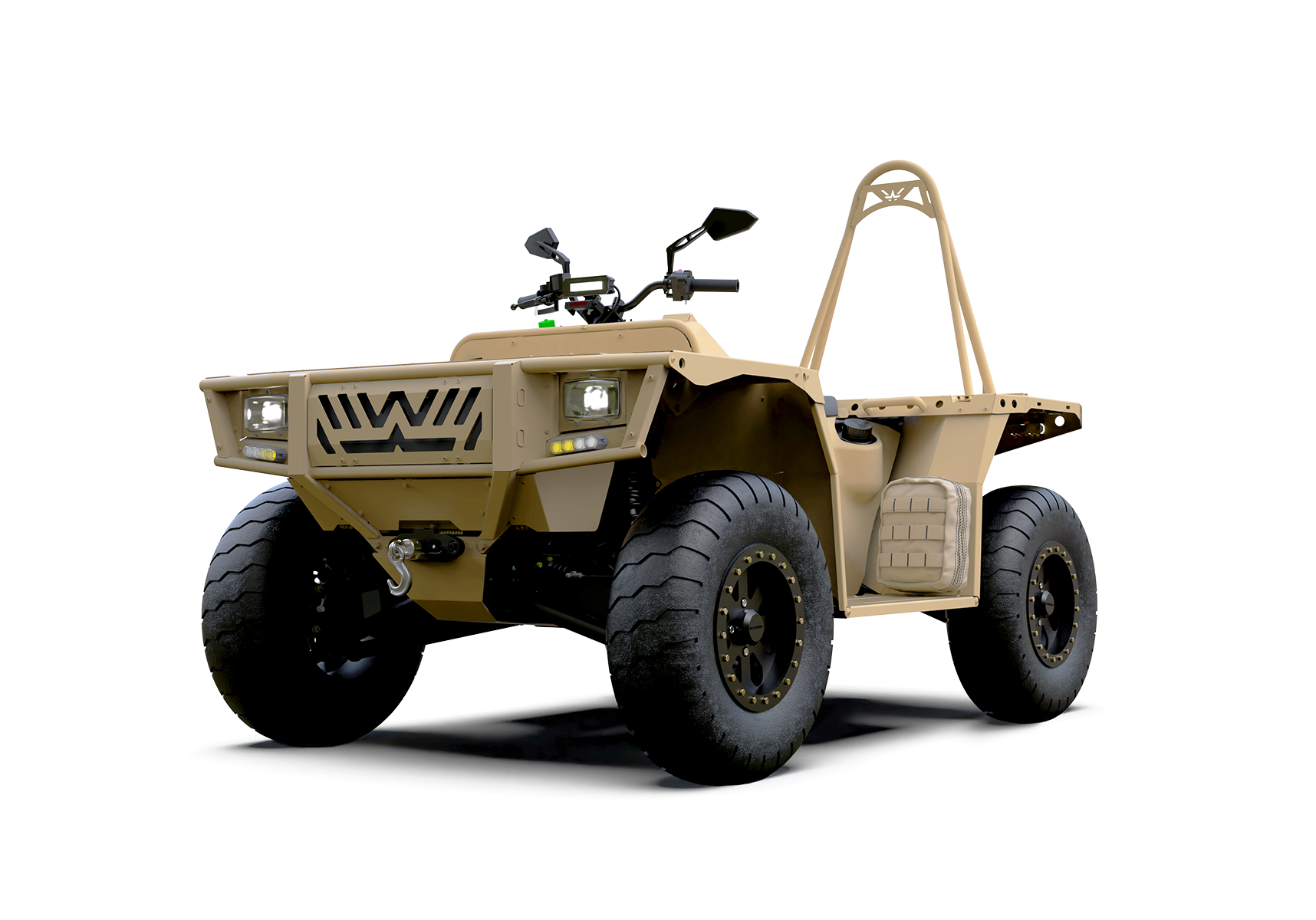

The Scorpion 4

Powertrain with variable transmission

Multifuel diesel engine

Variable transmission (from 3 to 100 km/h)

Terrain capacity and mobility

Continuous 4 wheel drive including differential

4-wheel steering

High off-road suspension capacity

Scorp1
Scorp6

Air Transportable

Internal transport

Underslung

Multifunctional Mule

High payload --> 500 kg

Front and back mount for medic stretcher

Variable weapon mount

Multifunctional loading deck front and back

scorp2

SPECS

  • Curb weight: 700 kg
  • Length: 2530 mm
  • Width: 1490 mm
  • Height: 1270 mm
  • Angle of approach (unloaded): 77°
  • Angle of departure (unloaded): 75°
  • Ground clearance (unloaded): 300 mm
  • Payload: 520 kg
  • Max total vehicle weight: 1220 kg
  • Engine type: Diesel common rail - 3 cyl
  • Max power: 45 kW
  • Max torque: 200 Nm
  • Fuel types: Multi-fuel diesel (F-54, F-63)
  • Fuel tank capacity: 30 L
  • Operational fuel range: 600 km
  • Driveline: Permanent 4x4
  • Transmission: RVT variable transmission
  • Differentials: Front and rear differential with manual operated full locks.
  • Tires: 29x7x14 Runflat
  • Rims: Bead lock

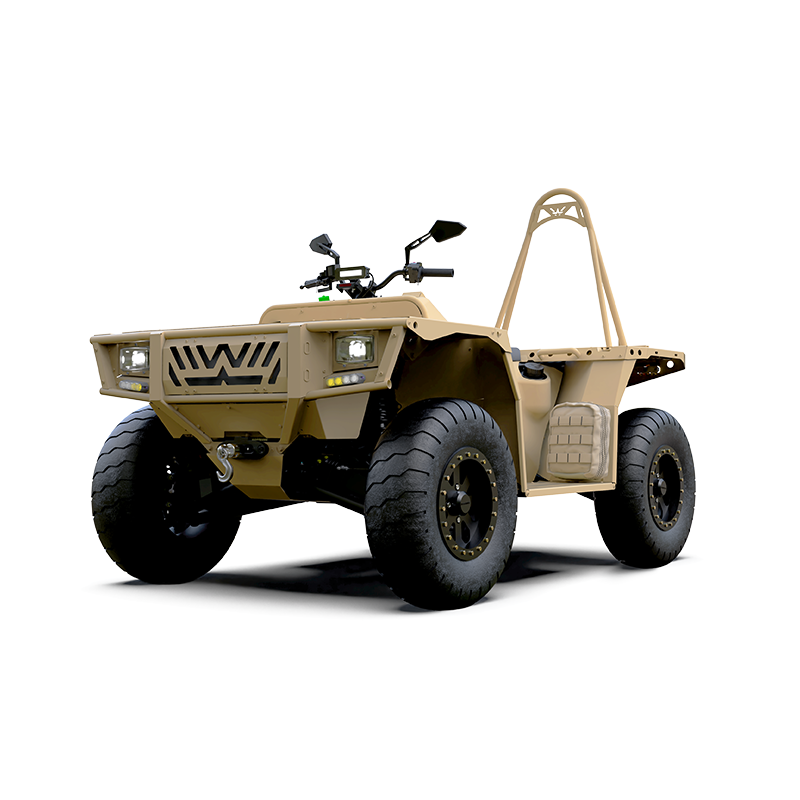

Scorp5

More information?

The weight and dimensions of the Vector are designed to fit in a chinook helicopter. Special lifting brackets make the Vector also transportable in underslung, hanging from a helicopter.
