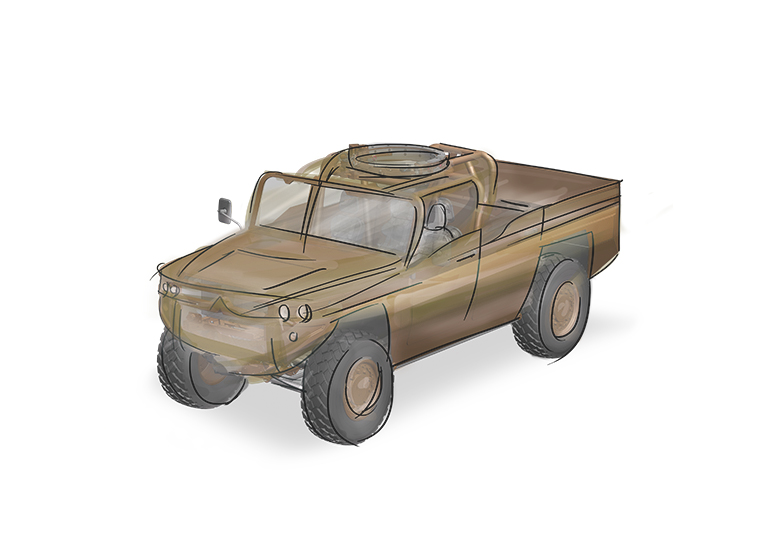

Mammoth

The Mammoth is currently in concept fase. More information will be available soon

Specifications

  • Length: 5600 mm
  • Width: 1990 mm
  • Height: 2300 mm
  • Angle of approach: 45°
  • Angle of departure: 42°
  • Angle under vehicle: 31°
  • Gradability: >60%
  • Vertical step: 425 mm
  • Ground clearance: 440 mm
  • Turning circle (wall to wall): 10,5 m (with optional 4WS)
  • Fording: 1000 mm (without preparation)
  • Payload: 3500 kg
  • GVW: 8500 kg
  • Engine Type: Multifuel 6 cyl diesel engine
  • Max power: 200 kW
  • Max torque: 610 Nm
  • Driveline: Permanent 4x4
  • Transmission: 8-speed Automatic with manual gear selector
  • Transfer case: Hi/low gear + LSD
  • Differential Front/Rear: .LSD combined with EDL
  • Tire size: 335/80 R20
  • Max. speed: 110 km/h
  • Fuel tank capacity: 150 l
  • Range: 800 km
  • Maximaal vermogen: 50KW (3.500 RPM)
  • Maximale koppel: 130 Nm
  • Brandstof types: Diesel
  • Brandstof tank: 40 liter
  • Operationeel brandstofbereik: 600 km
  • Aandrijving: 4×4 continue
  • Versnellingsbak: DCT (Dual Clutch) automatische transmissie
Productpagina-mammoth

MORE INFORMATION?

The weight and dimensions of the Vector are designed to fit in a chinook helicopter. Special lifting brackets make the Vector also transportable in underslung, hanging from a helicopter.
